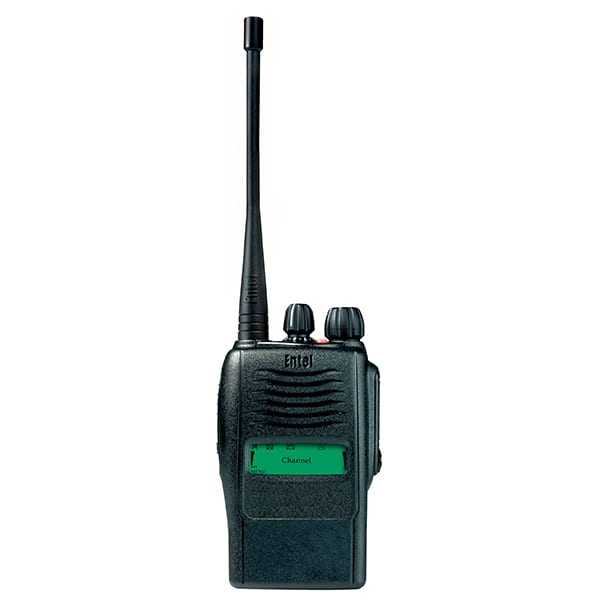

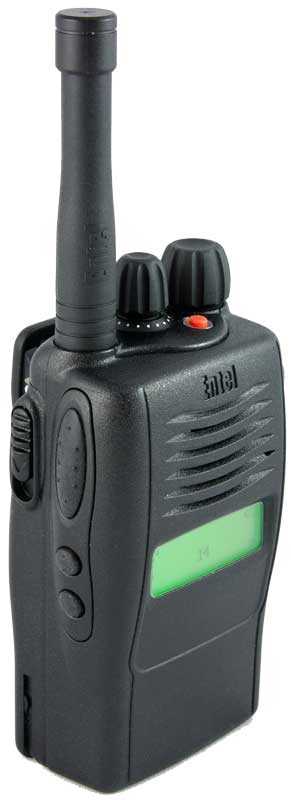

Entel HX483 UHF 400-470 MHz Handheld Radio

DISCONTINUED PRODUCT

Entel HX483 – Entry LCD Handheld Radio UHF 400-470 MHz

Standard package includes:

– CNB450E – 7.4v, 2000mAh rechargeable Lithium-Ion battery pack
– CSAHX – Rapid charger
– CBH450 – Spring loaded belt clip
– High efficiency antenna
– User manual

SKU: HX483 Category: Tags: ,

Description

General
  • Frequency Range: 400 – 470MHz
  • Channels: 255 Channels
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Communication Method: Simplex / semi duplex
  • Antenna Impedance: 50 ohm
  • Antenna: Whip / stubby
  • Battery Type: 1800 mAh Li-Ion battery pack
  • Power Supply Voltage: 7.4V DC
  • Current Drain (nominal): TBA
  • Duty Cycle (5/5/90): TBA
  • Microphone: Internal condenser microphone
  • Operating Temperature: -20° to +55°
  • Size (mm): 61(W) x 100(H) x 31(D)
  • Weight: 274g with battery and aerial
Transmitter
  • Power Output: HIGH – 5W, LOW – 1W
  • Modulation: 8K0G3E/16K0G3E
  • Oscillator Method: PLL
  • Frequency Stability: < ±0.00025% (±2PPM)
  • Maximum Deviation: ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
  • Audio Distortion: < 5% (1 kHz 60%)
  • Spurious Emission: -68 [dBc]
  • Hum & Noise: -40 [dB]
Receiver
  • Receiver Type: Double Super Heterodyne type
  • Sensitivity: -0.25uV (12dB SINAD)
  • Frequency Stability: ±0.00025%(±2PPM)
  • Spurious Rejection: -60 dB
  • Adjacent Channel Selectivity: -60 dB (Narrow) , -70 dB (Wide)
  • Distortion: 5% (1 kHz 60%)
  • Hum & Noise: -40 dB
  • Audio Output: 1W
  • Speaker Size: 45 mm

Additional information

Weight0.27 kg
Charger

With Single Unit Charger
