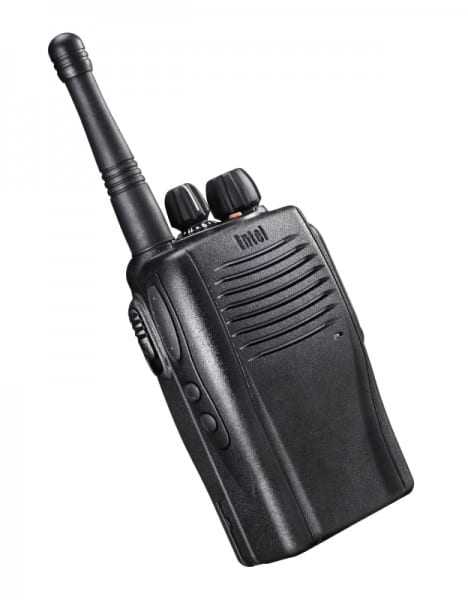

Entel HX412 VHF Mid Band 66-88 MHz Handheld Radio

Entel HX412 VHF Mid Band 66-88 MHz
Entry Handheld Radio

NB This model is only approved for use outside of Europe.

Standard package includes:

  • CNB450E – 7.4v, 2000mAh rechargeable Lithium-Ion battery pack
  • CSAHX – Rapid charger
  • CBH450 – Spring loaded belt clip
  • High efficiency antenna
  • User manual

CONTACT US FOR PRICING AND AVAILABILITY

Description

DOWNLOAD BROCHURE  Download Brochure
General
  • Frequency Range: 66 – 88 MHz
  • Channels: 16 Channels
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Communication Method: Simplex / Semi Duplex
  • Antenna Impedance: 50 Ohm
  • Antenna: Whip / Stubby
  • Battery Type: 1800 mAh Li-Ion Battery Pack
  • Power Supply Voltage: 7.4V DC
  • Current Drain (nominal): TBA
  • Duty Cycle (5/5/90): TBA
  • Microphone: Internal Condenser Microphone
  • Operating Temperature: -20° to +55°
  • Size (mm): 61(W) x 100(H) x 31(D)
  • Weight: 274g with Battery and Aerial
Transmitter
  • Power Output: High – 5W, Low – 1W
  • Modulation: 8K0G3E/16K0G3E
  • Oscillator Method: PLL
  • Frequency Stability: < ±0.00025% (±2PPM)
  • Maximum Deviation: ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
  • Audio Distortion: < 5% (1 kHz 60%)
  • Spurious Emission: -68 [dBc]
  • Hum & Noise: -40 [dB]
Reciever
  • Receiver Type: Double Super Heterodyne
  • Sensitivity: -0.25uV (12dB SINAD)
  • Frequency Stability: ±0.00025%(±2PPM)
  • Spurious Rejection: -60 dB
  • Adjacent Channel Selectivity: -60 dB (Narrow) / -70 dB (Wide)
  • Distortion: 5% (1 kHz 60%)
  • Hum & Noise: -40 dB
  • Audio Output: 1W
  • Speaker Size: 45 mm

Additional information

Weight 0.27 kg
