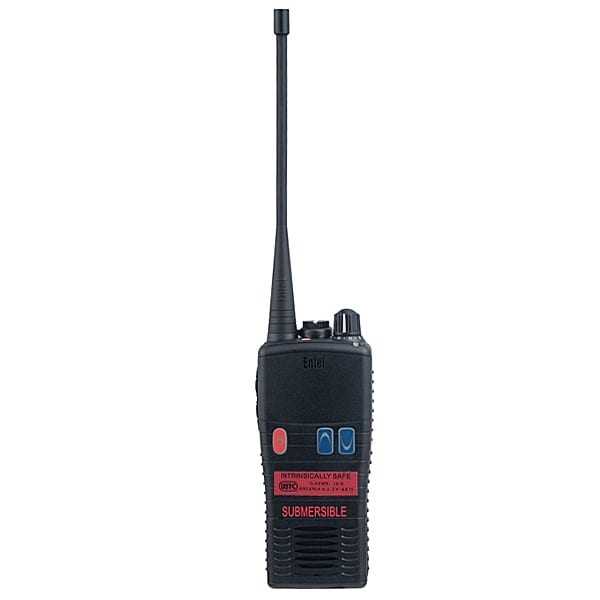

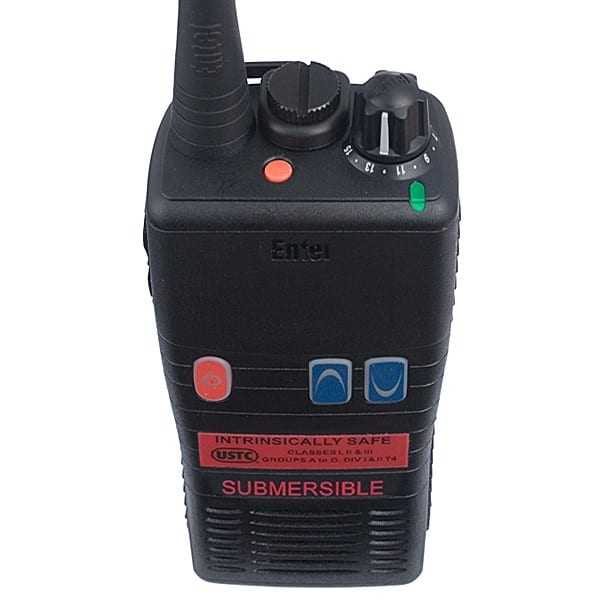

Entel HT822 – Entry ATEX IIA Radio VHF 136-174 MHz

DISCONTINUED PRODUCT

Entel HT822 – Entry ATEX IIA Radio VHF 136-174 MHz

ATEX Approved IIA – For those users not restricted to the IIC 1 watt regulatory classification, the HT800 range of ATEX certified portables meet IIA T4 with a full 4 watts of transmitter power.

This classification does not meet European ATEX safety directive, therefore these handsets are not recommended for use in the EU. See HT882 range for EU ATEX compliant products.

Standard package includes:

– CNB950E – 7.4v, 1800mAh rechargeable Lithium-Ion battery pack
– Drop-in charger
– CBH950 – Spring loaded belt clip
– High efficiency antenna
– User manual

SKU: HT822 Category: Tags: ,

Description

DOWNLOAD BROCHURE  Download Brochure

General

– Frequency Range: 136 – 174MHz
– Channels: Non LCD 16 Channels, LCD 255 channels
– Channel Spacing: 12.5 kHz / 25 kHz
– Communication Method: Simplex / semi duplex
– Antenna Impedance: 50 ohm
– Antenna:Whip / stubby
– Battery Type: 2000 mAh Li-Ion battery pack
– Power Supply Voltage: 7.4V DC
– Current Drain (nominal): 40mA
– Duty Cycle (5/5/90): 12.5 hours
– Microphone: Internal condenser microphone
– Operating Temperature: -20° to +55°C
– Size (mm): 59.5(W) x 130(H) x 37(D)
– Weight: 277g with battery and aerial

Transmitter

– Power Output: High – 4W / Low – 1W
– Modulation: 8K0G3E/16K0G3E
– Oscillator Method: PLL
– Frequency Stability: 2.5PPM
– Maximum Deviation: ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
– Audio Distortion: < 5% (1 kHz 60%)
– Spurious Emission: -68 [dBc]
– Hum & Noise: -40 [dB]

Receiver

– Receiver Type: Double Super Heterodyne type
– Sensitivity: -0.25uV (12dB SINAD)
– Frequency Stability: 2.5PPM
– Adjacent Channel Selectivity: -60 dB (Narrow) , -70 dB (Wide)
– Distortion: < 5% (1 kHz 60%)
– Hum & Noise: -40 dB
– Audio Output: 1W

Additional information

Weight0.28 kg
