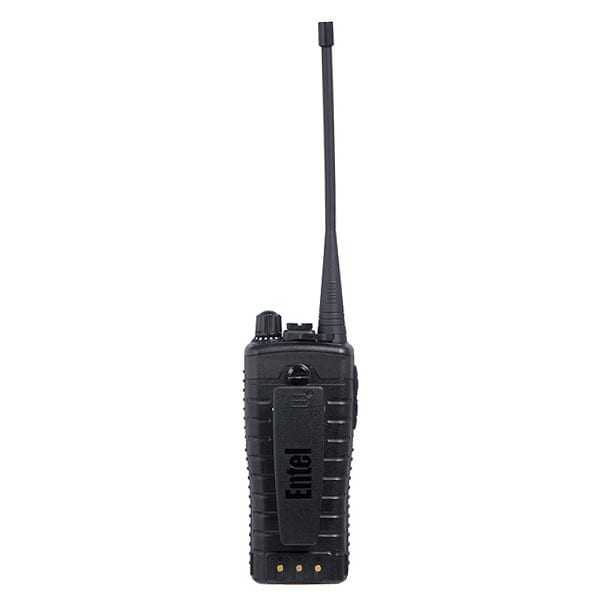

Entel HT726 – Advanced Submersible LCD Keypad Radio VHF 136-174 MHz

Entel HT726 – Advanced Submersible LCD Keypad Radio VHF 136-174 MHz

Standard package includes:

– CNB750E – 7.4v, 2000mAh rechargeable Lithium-Ion battery pack
– CSAHT – Rapid charger (HTxx2 & HTxx3 models only)
– CBH750 – Spring loaded belt clip
– High efficiency antenna
– User manual

CONTACT US FOR PRICING AND AVAILABILITY

Make an enquiry

SKU: HT726

Categories: All Entel Products

Description

DOWNLOAD BROCHURE  Download Brochure
General
  • Frequency Range: 136-174 MHz
  • Channels: 255 Channels
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Communication Method: Simplex / semi duplex
  • Antenna Impedance: 50 ohm
  • Antenna: Whip / stubby
  • Battery Type: 2000 mAh Li-Ion battery pack
  • Power Supply Voltage: 7.4V DC
  • Current Drain (nominal): TBA
  • Duty Cycle (5/5/90): TBA
  • Microphone: Internal condenser microphone
  • Operating Temperature: -20° to 55°
  • Size (mm): 59.5(W) x 130(H) x 37(D), W = 59.5  (62 including protrusions), H = 130 (145 inc knobs), D = 37mm (41 including battery protrusions)
  • Weight: 277g with battery and aerial
Transmitter
  • Power Output: HIGH – 5W, LOW – 1W
  • Modulation: 8K0F3E/16K0F3E
  • Oscillator Method: PLL
  • Frequency Stability: < ±0.00025% (±2PPM)
  • Maximum Deviation: ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
  • Audio Distortion: < 5% (1 kHz 60%)
  • Spurious Emission: -68 [dBc]
  • Hum & Noise: -40 [dB]
Receiver
  • Receiver Type: Double Super Heterodyne type
  • Sensitivity: -0.25uV (12dB SINAD)
  • Frequency Stability: ±0.00025%(±2PPM)
  • Spurious Rejection: -60 dB
  • Adjacent Channel Selectivity: -60 dB (Narrow) , -70 dB (Wide)
  • Distortion: < 3% Typical
  • Hum & Noise: -40 dB
  • Audio Output: 1W
  • Speaker Size: 38 mm
