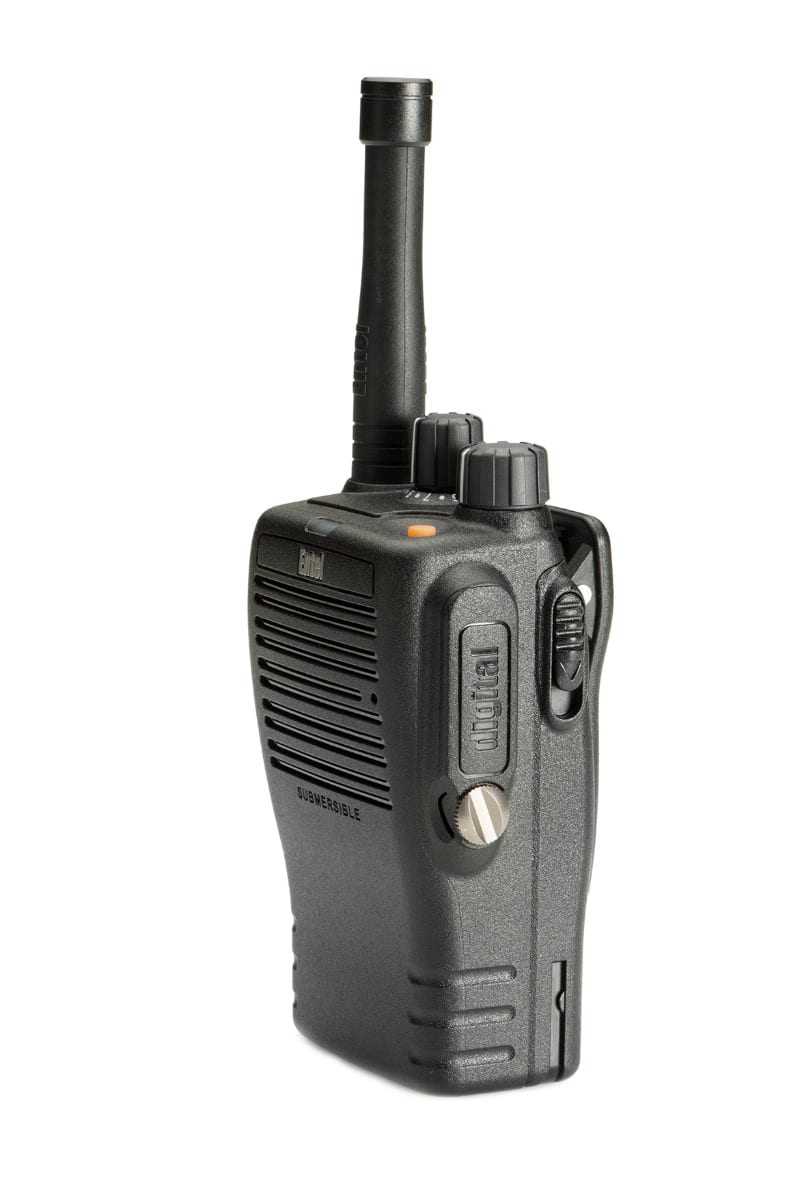

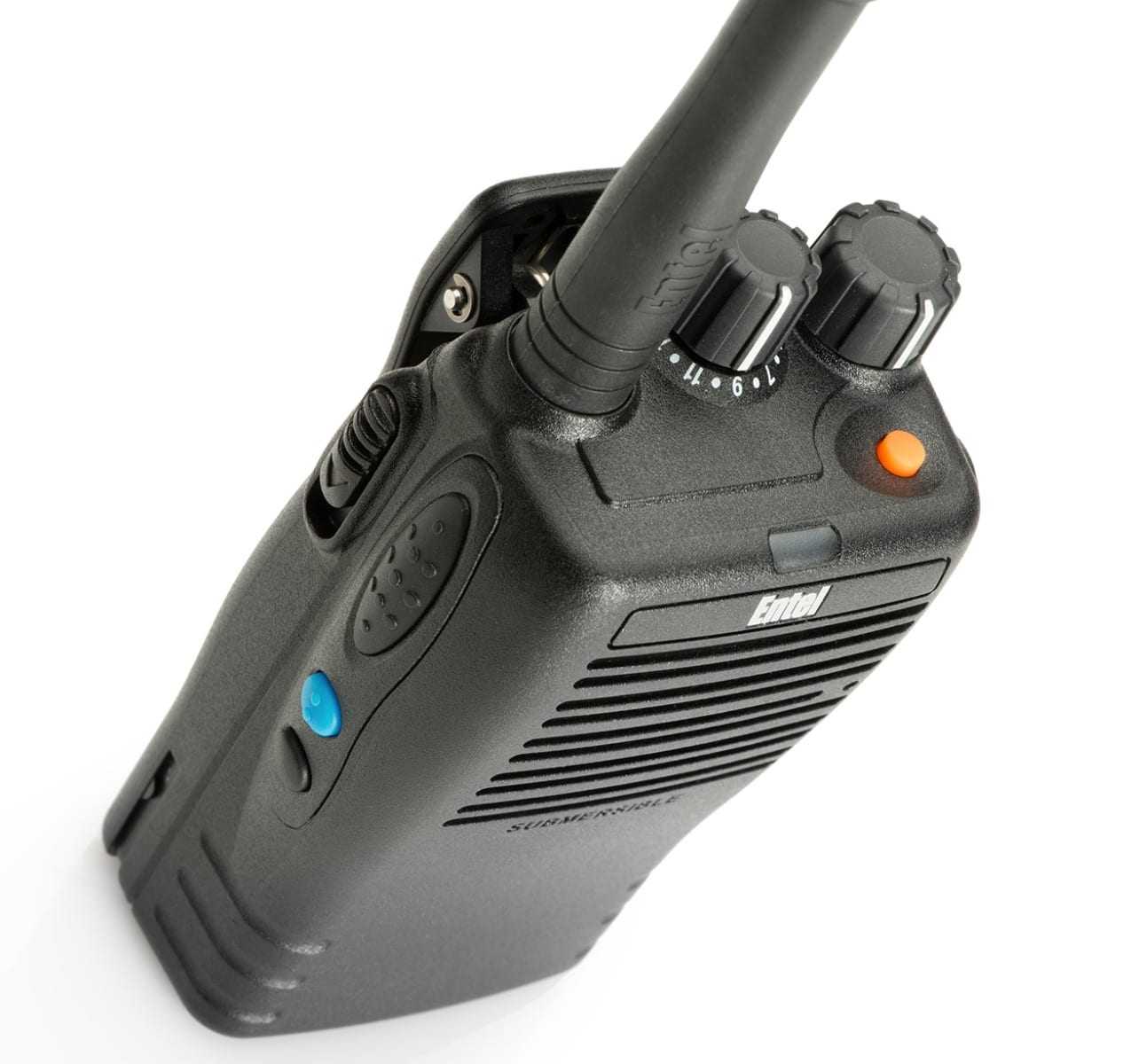

Entel DX482 / DX482A
Entel DX482 / DX482A
The DX400 series DMR Digital portables are the most compact, MIL-STD & IP68, affordable business critical radios available today.
DX400 radios deliver outstanding audio, clarity, quality & volume that really needs to be compared to other DMR radios to be truly appreciated.
The carefully-designed ergonomics, ultra-tactile buttons, superior construction and unrivalled audio levels also makes the DX400 radios perfectly at home in applications where much larger commercial-size radios would have previously been used.
CNB450E 2000mAh Lithium-Ion battery pack
CSAHX Single pod Rapid mains charger
Spring loaded rear clip
High efficiency antenna
Quick start user guide
Entel DX482 / DX482 A
- IP68 rated which means that they are dust protected and fully submersible
- MILSTD 810C/D/E/F/G Meeting MIL-STD 810C/D/E/F/G and providing commercial grade construction for tough, enduring performance.
- Robust accessory socket
- High contrast white on black OLED display
- Channels / Zones DX482 portables provide 16 programmable channels & 2 programmable Zones.
- Li-Ion battery technology ensuring longer standby / talk times.
- Field upgradeable to add future features Entel adds and improves features on its DX400 radios by way of free software updates.
TDMA Two-Slot Direct Mode (aka ‘Two Slot Simplex’)
The DMR Digital standard splits a single 12.5Khz Analogue channel into two separate channels therefore doubling the number of channels available to the radio user. Two-Slot operation is normally only possible when a DMR Repeater is included in the system. However Entel DMR radios overcome this restriction on both Simplex & DMR446 channels so both channels (slots) are always available to the user no matter the channel type.
Mixed Mode Operation
In Mixed Mode operation the radio can receive both DMR Digital & Analogue modes without the user having to change channel. Mixed Mode is beneficial where both Analogue & Digital radios are being used together, e.g. where a customer is migrating from an existing Analogue radio system to a DMR Digital radio system.
Keylock To avoid accidental operation, your radio’s keys & controls can be locked.
Programmable channel monitor button If you have channel protection enabled on your DX400 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
Individual, Group Calling & Caller ID Entel’s DX400 models provide both Individual and Group calling which can be selected via the channel control and, on display models, the radio’s large contact list. Display models can also display the callers ID.
Privacy DX400 portables provide enhanced privacy as standard therefore providing additional protection compared to Analogue radios.
Personal Attack Button All Licensed DX400 portables include a programmable personal attack button. Once activated, the radio will send an alarm call to other radio(s) as well as sounding a local alarm.
Lone-Worker & Man-Down Alarms Entel’s Licensed DX400 portables are designed to protect lone workers. The radios Lone-Worker timer checks the radios user is OK; if no response is received, the radio will automatically send an alarm call to other radio(s). The local alarm additionally alerts non-radio users in the vicinity to the emergency. Should someone fall and become unconscious, the optional Man-Down sensor can automatically send an alarm.
